South Pedway, University of Alberta

Model shadow Change me

Universal Pin Connectors used at Web Member Ends in Pedestrian Truss Bridge

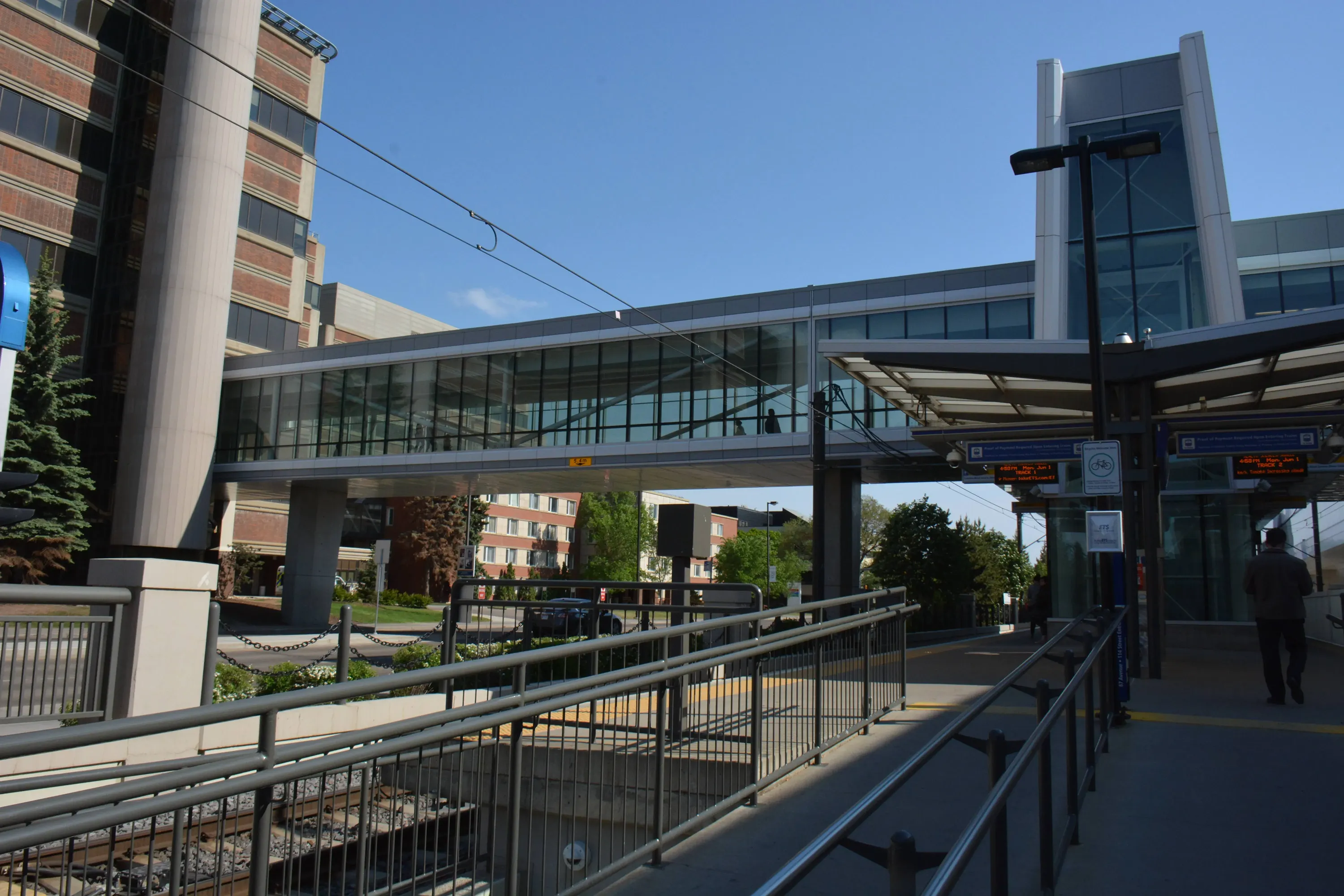

This pedestrian bridge, which links between the Walter C. Mackenze Health Sciences Center and the Research Transition Facility over 114 Street at the University of Alberta in Edmonton, utilizes 8.625-inch (219 mm) round Hollow Structural Steel (HSS) web members fitted with CAST CONNEX® Universal Pin Connectors™ at each end, meeting the project's Architecturally Exposed Structural Steel (AESS) Category 3 requirements

Owner: University of Alberta
Architects: Stantec and Dialog
Structural Engineers: Dialog
General Contractor: PCL
Steel Fabricator: Quirion Métal
