Harbourfront Centre Stage

Harbourfront Centre Stage

|
Toronto
,
Canada

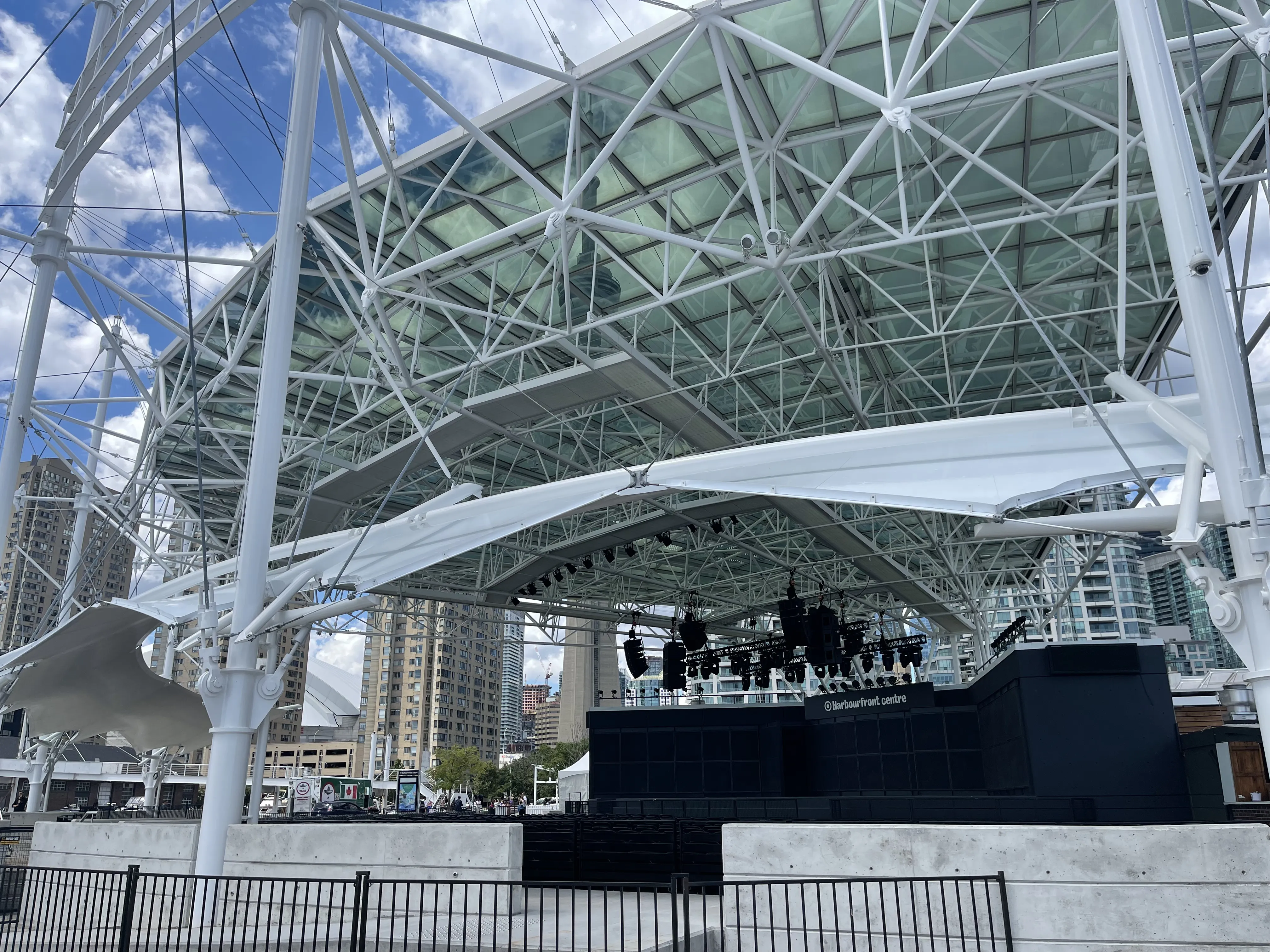

Harbourfront Centre is a prominent cultural institution on Toronto's picturesque waterfront. Its facility includes Harbourfront Center Stage, which hosts its vibrant outdoor summer music program and live events.

CAST CONNEX® Diablo™ Bolted Splices were used to streamline and speed up on-site fabrication of the project’s new fabric canopy structure, allowing for efficient and cost-effective erection, meeting budget and construction timelines.

Owner: Harbourfront Centre

Architects: Tensile Integrity Inc.

Structural Engineers: Blackwell Structural Engineers

General Contractor: Multi Build Solutions Group

Steel Fabricator: Walters Inc.

Harbourfront Centre Stage

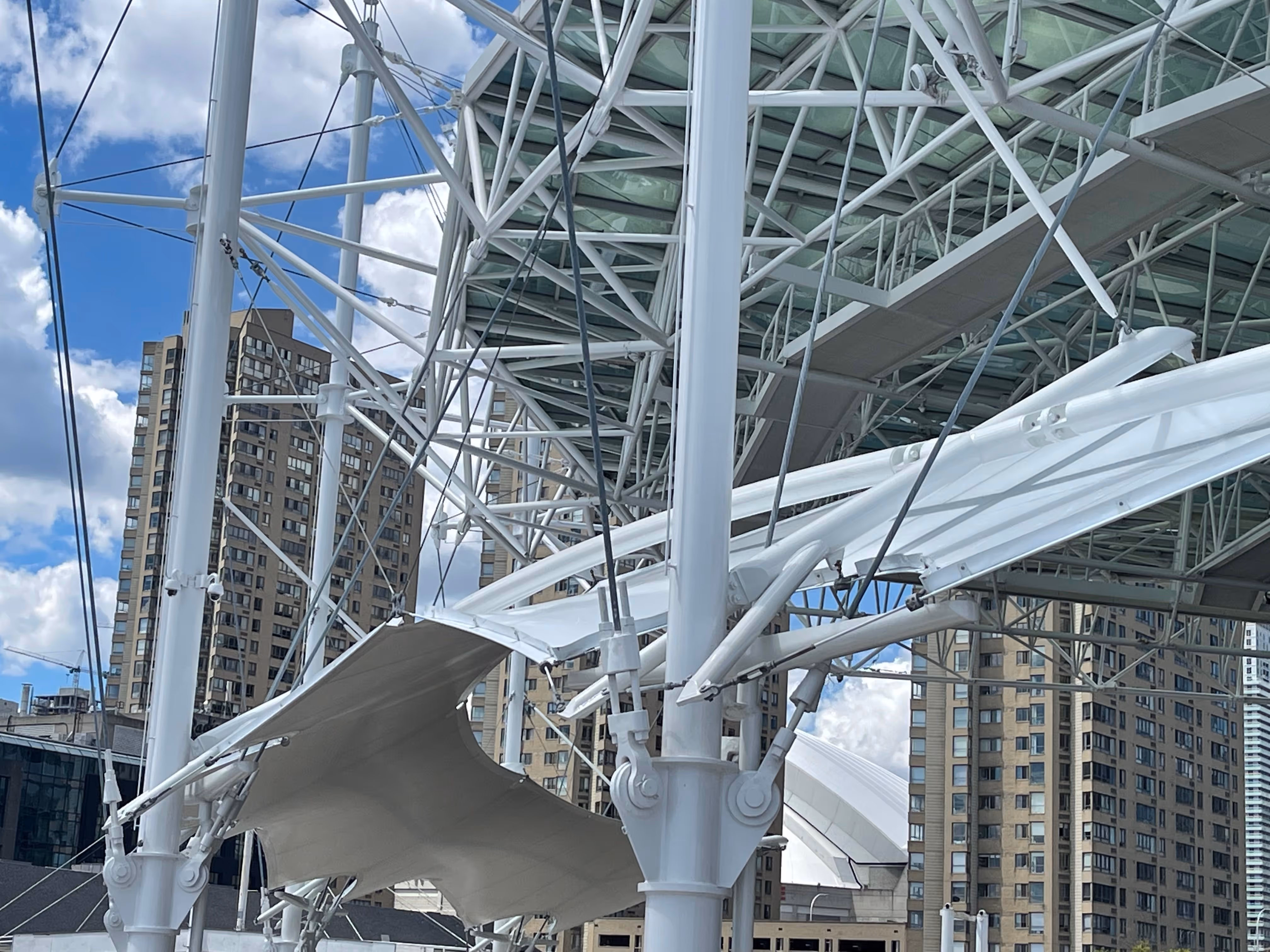

To add raised seating and rain protection, project renovations added a new fabric structure designed by architect Athos Zaghi with Blackwell Structural Engineers. Walters Inc. collaborated with Tensile Integrity Inc. to fabricate and install the fabric canopy, which included CAST CONNEX’s standardized Diablo Bolted Splices (DBS). Walters seamlessly integrated the DBS to simplify fabrication and site assembly.

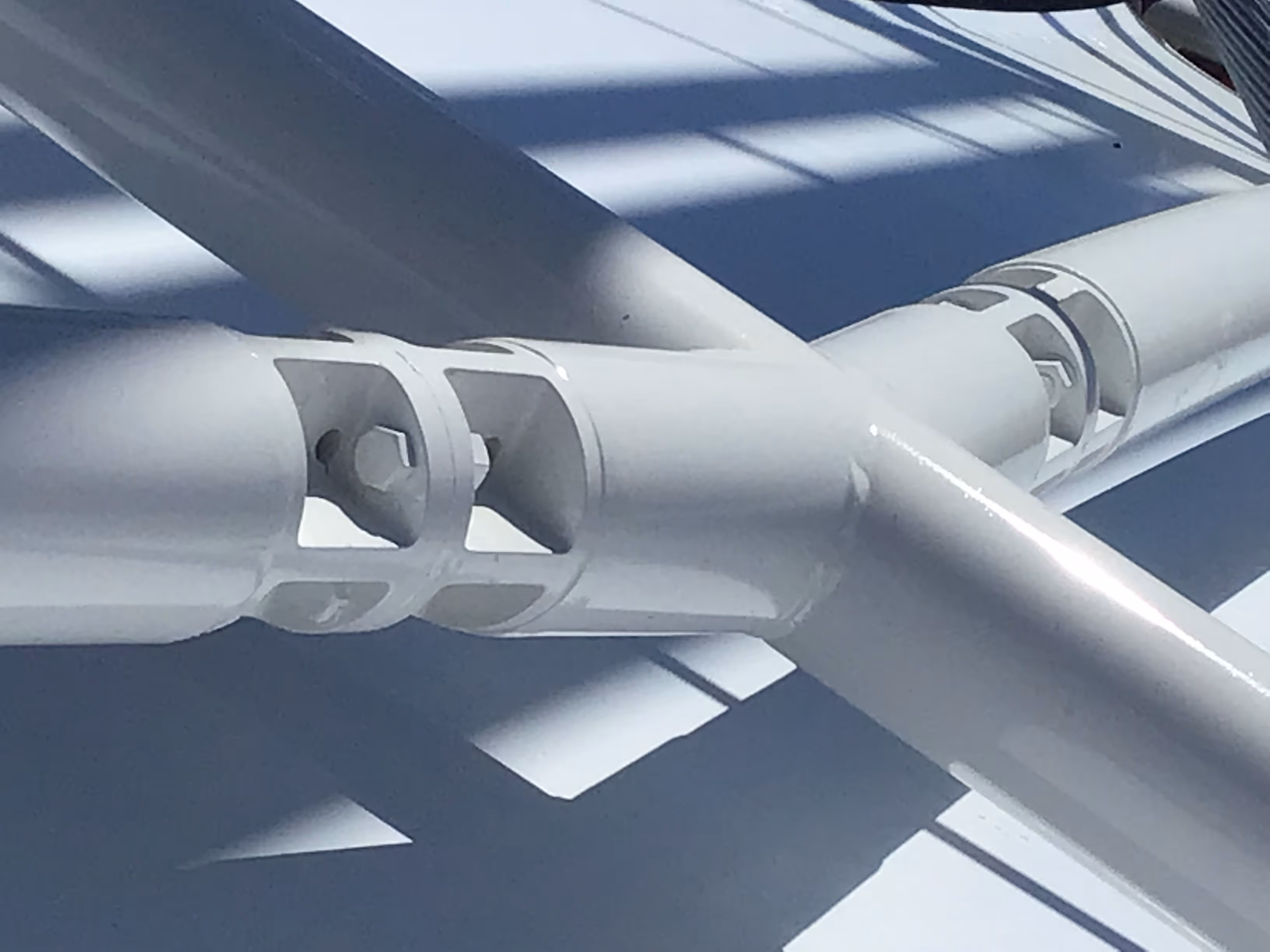

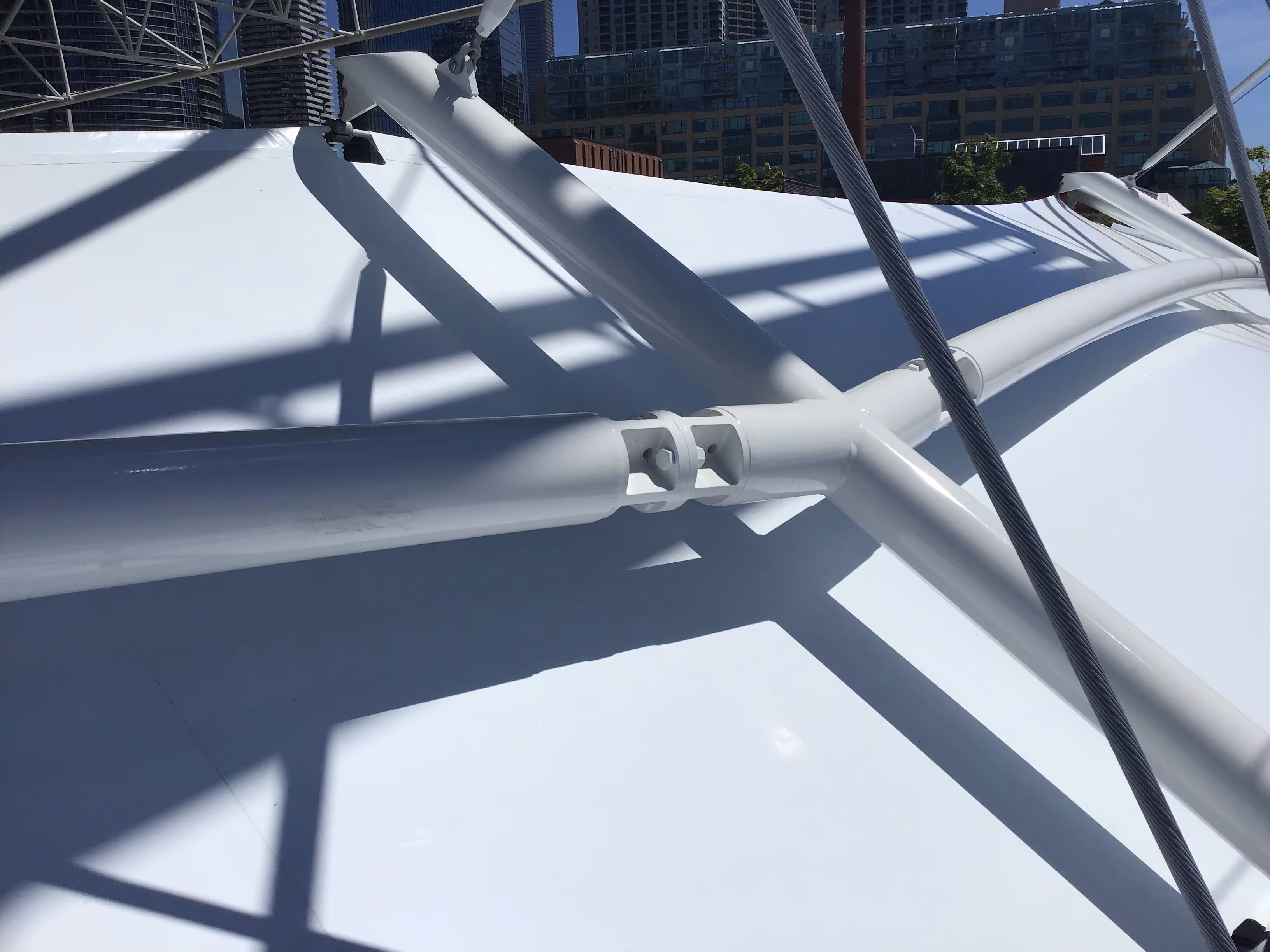

The Diablo Bolted Splices do not include cover plates – to showcase the aesthetics and the tectonic expression of the fabric structure, the bolted splices remain exposed adding to the overall appeal of the installation.

CAST CONNEX® Diablo™ Bolted Splices are cast steel fittings that enable unobtrusive field bolted splices in circular hollow structural section (HSS) members. The fittings are designed such that the bolted connection is inboard of the outer diameter of the HSS.

No items found.

Elevated design for projects of any budget

CAST CONNEX standardized connectors are available in a range of sizes to fit standard member profiles. These pre-engineered products are affordable enough to be used repetitively or as a one-off. Each connector is designed to simplify fabrication labor, especially in architecturally exposed applications.
